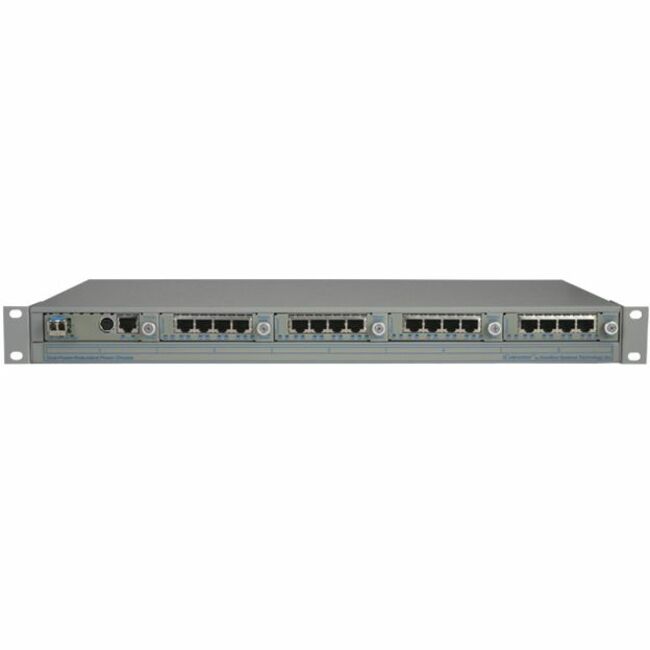

OMNITRON Omnitron iConverter 2430-2-12W T1/E1 Multiplexer - 1 Gbps - 1 x RJ-45
Share this page:
[ Close ] + Enlarge Image Product IDs: ITEM #: 1098769 Mfg Part #: 2430-2-12W   Availability: Special Order Sales   FREE SHIPPING ! for Contiguous 48 states (Delivery within 6-10 Business Days) Qty: Unit Price: $3,098.98 Qty: Add item to cart to view expected arrival date. Sales tax will be collected for CA,MA customers. The item will be shipped from manufacturer directly as special order. If the lead time takes extra 5 business days more than the shipping method you select, we will contact you for an updated ETA. If the lead time is more than 3 business days, we will contact you for updated information. Product Condition: Brand new sealed with full manufacturer warranty unless otherwise specified.

	Overview		Similar (15)		Accessories
Marketing Information: The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fiber optic transport link, and features remotely managed testing and configuration capabilities. The iConverter T1/E1 MUX/M operates in a back-to-back configuration, and can be used in applications such as multiple T1/E1 extension, mobile backhaul and building-to-building PBX connectivity. The T1/E1 copper interfaces are available in 4, 8, 12 or 16 RJ-48 port configurations for balanced T1/E1 applications. Optional adapter cables are available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications. Additional hot-swappable 4-Port T1/E1 MUX modules can be installed to increase system capacity up to 16 T1/E1 ports maximum per 1U (1.75 inch) chassis. Main Specification General Information Manufacturer Omnitron Systems Technology Manufacturer Part Number 2430-2-12W Manufacturer Website Address www.omnitron-systems.com Brand Name Omnitron Product Line iConverter Product Model 2430-2-12W Product Name iConverter 2430-2-12W T1/E1 Multiplexer Product Type Data Multiplexer Interfaces/Ports Management Port Yes Number of Network (RJ-45) Ports 1 Number of SC Ports 1 Media & Performance Connectivity Technology Wired Media Type Supported Twisted Pair Media Type Supported Fiber Network Technology Supported 10/100/1000Base-T Network Technology Supported 1000Base-X Maximum Data Transfer Rate 1 Gbps I/O Expansions Number of Total Expansion Slots 4 Physical Characteristics Form Factor Rack-mountable Rack Height 1U Height 1.8" Width 17.2" Depth 9.0" Weight (Approximate) 7.50 lb Miscellaneous Package Contents iConverter 2430-2-12W T1/E1 Multiplexer 1 x 4-Port T1/E1 MUX Module 2 x VAC Power Supply Warranty Limited Warranty Lifetime
