General Information | |
Manufacturer | ASRock, Inc |
Manufacturer Part Number | H370M-ITX/AC |
Manufacturer Website Address | http://www.asrock.com |
Brand Name | ASRock |
Product Model | H370M-ITX/ac |
Product Name | H370M-ITX/ac Desktop Motherboard |
Product Type | Desktop Motherboard |
Processor & Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | H370 |
Total Processor Supported | 1 |
Processor Socket | Socket H4 LGA-1151 |
Processor Supported | Celeron |
Processor Supported | Core i3 |
Processor Supported | Pentium |
Processor Supported | Core i5 |
Processor Supported | Core i7 |
Memory | |
Number of Memory Slots | 2 |
Memory Form Factor | UDIMM |
Memory Form Factor | DIMM |
Maximum Memory Supported | 32 GB |
Memory Speed Supported | 2666 MHz |
Memory Speed Supported | 2400 MHz |
Memory Speed Supported | 2133 MHz |
Memory Technology | DDR4 SDRAM |

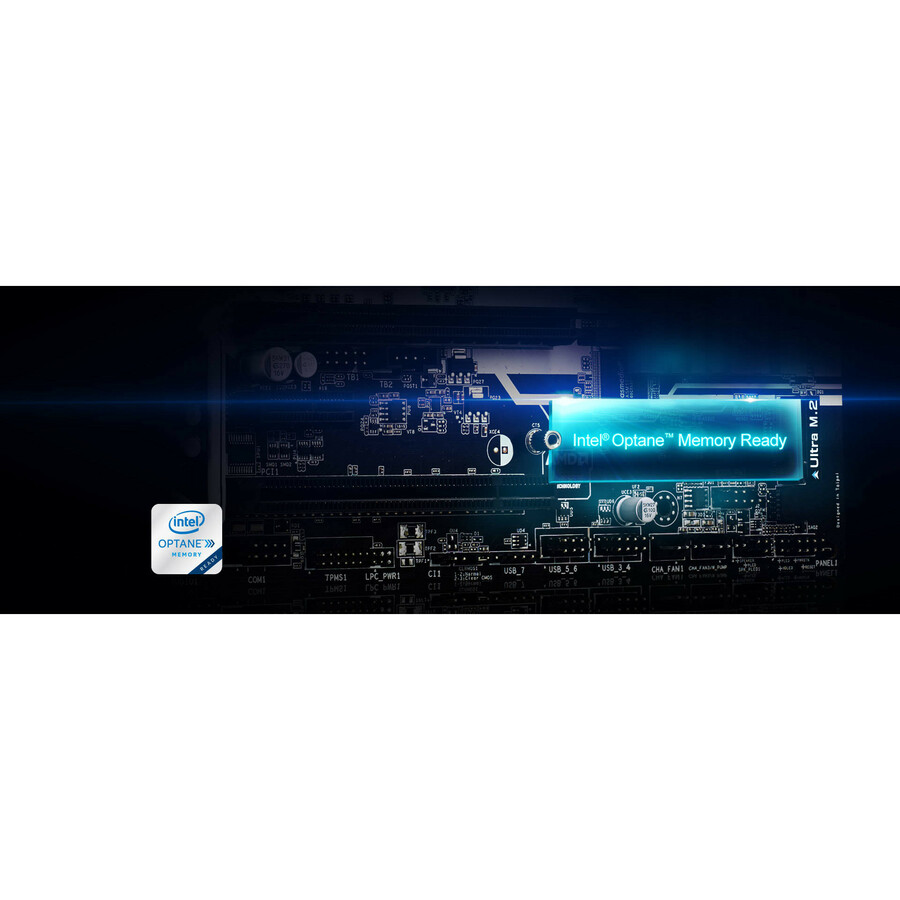

Intel Optane Memory Ready | Yes |
I/O Controller | |
Controller Type | Serial ATA/600 |
Intel RST | Yes |
RAID Supported | Yes |
RAID Levels | 0 |
RAID Levels | 1 |
RAID Levels | 5 |
RAID Levels | 10 |
Video | |
Onboard Video | CPU Dependent Video |
Audio | |
Audio Channels | 7.1 |
Network & Communication | |
Bluetooth | Yes |
Gigabit Ethernet | Yes |

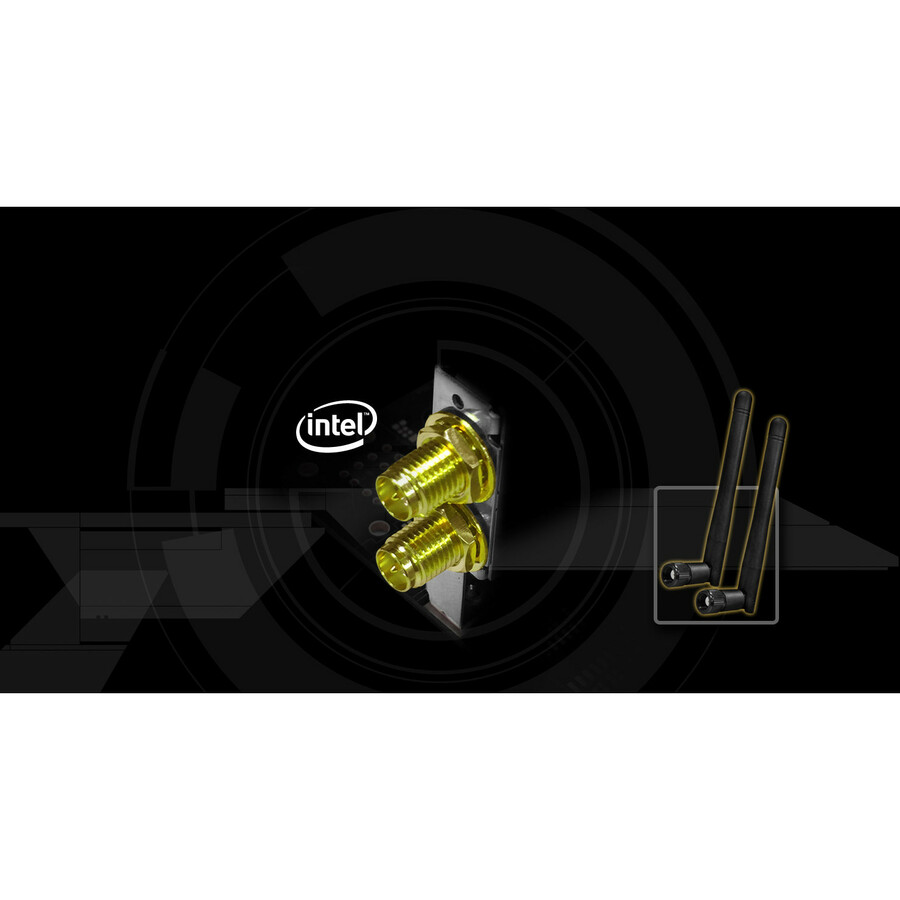

Wireless LAN | Yes |
I/O Expansions | |
Number of Total Expansion Slots | 1 |
Total Number of PCI Express Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Interfaces/Ports | |

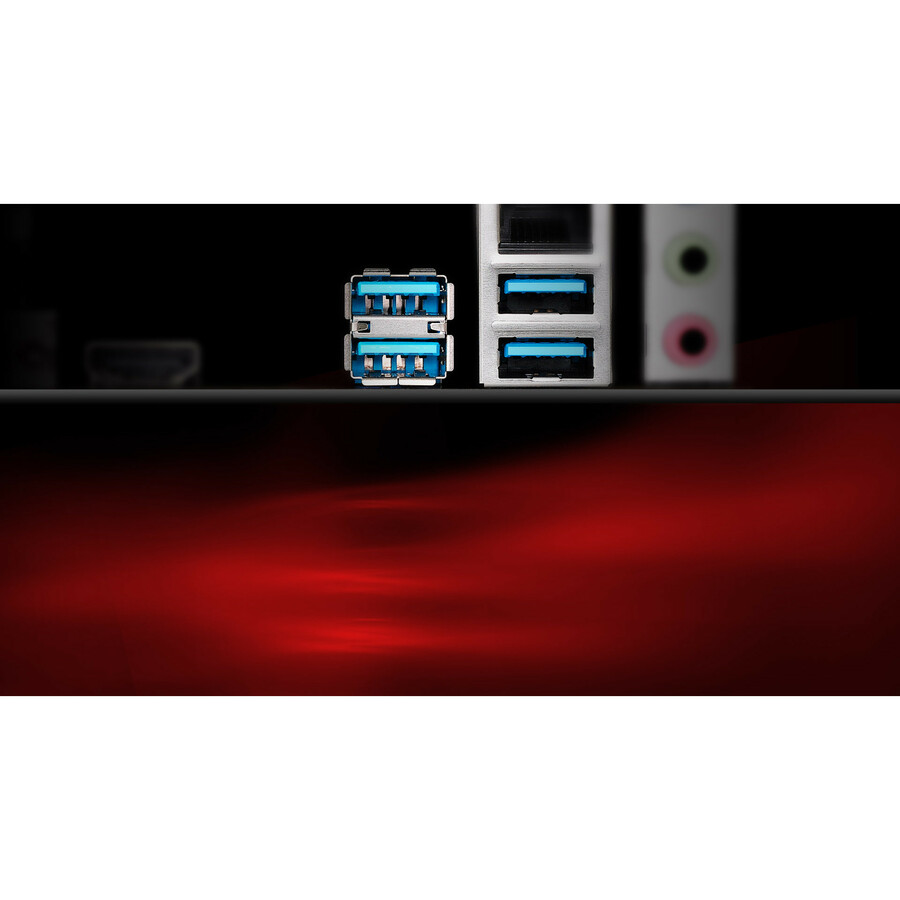

Total Number of USB Ports | 8 |
Number of USB 3.1 Ports | 6 |
HDMI | Yes |
DisplayPort | Yes |
Onboard Interfaces | |
Number of SATA Interfaces | 6 |
Number of M.2 Interfaces | 1 |
Total Number of Onboard USB Ports | 4 |
Number of Onboard USB 3.1 Ports | 2 |
Physical Characteristics | |
Form Factor | Mini ITX |
Width | 6.7" |
Depth | 6.7" |
