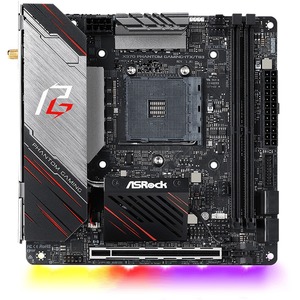

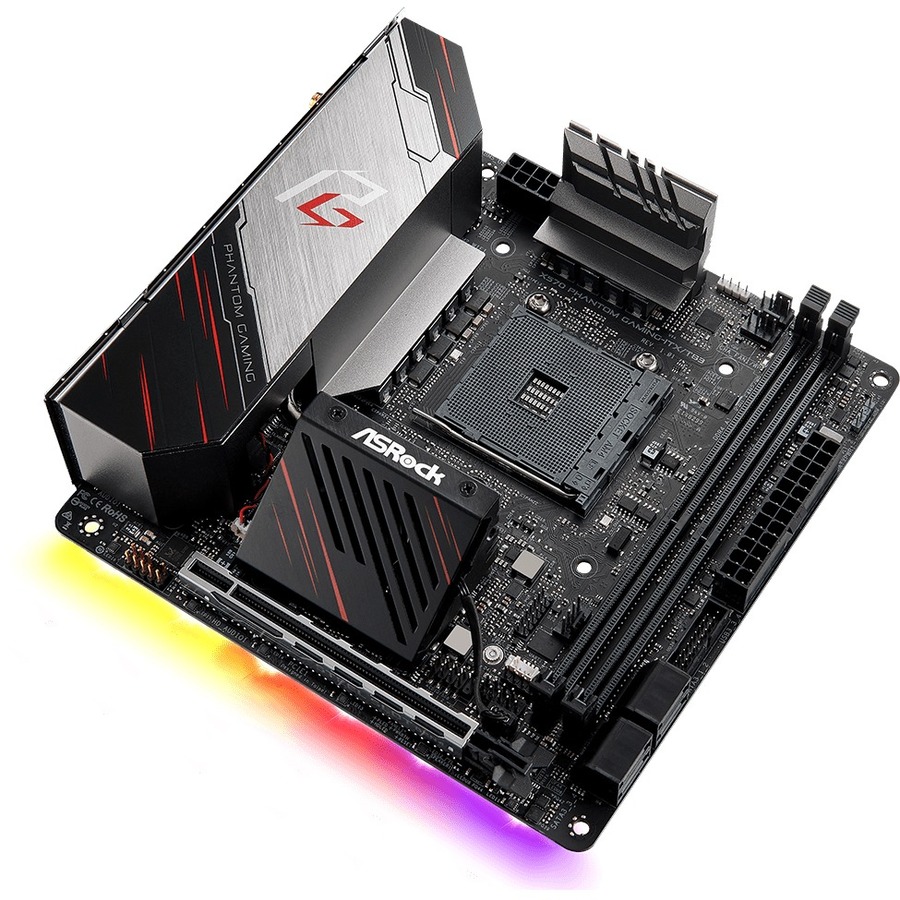

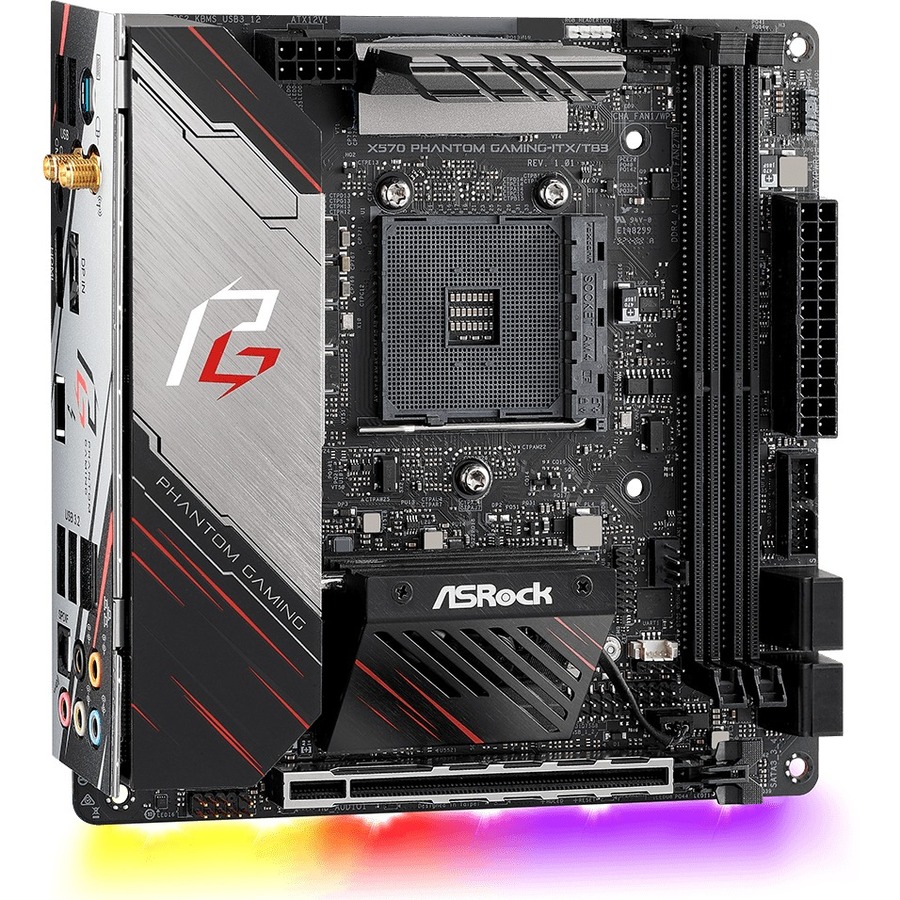

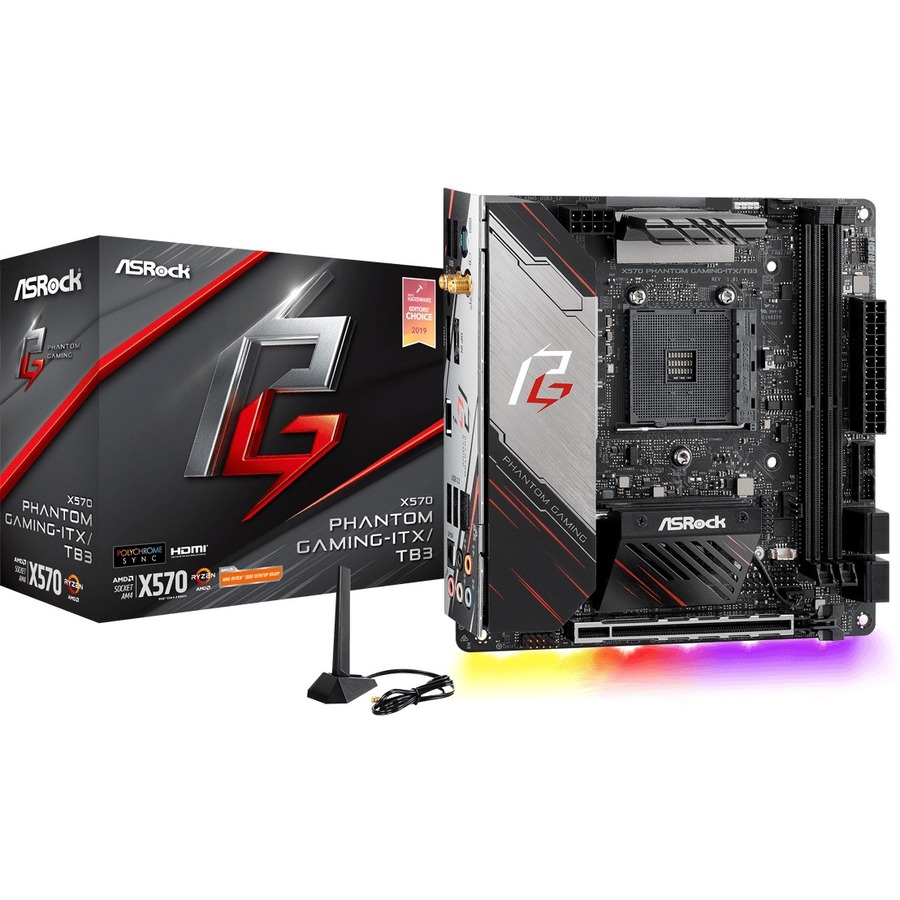

Specifications

• Mfr Part Number: X570 PHANTOM GAMING-ITX/TB3
• Unique Feature:
  • ASRock USB 3.2 Gen2
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock Thunderbolt 3 Type C USB 3.2 Gen2 Port (40Gb/s for Thunderbolt protocol; 10 Gb/s for USB3.2 protocol)
  • ASRock Super Alloy
    - Premium 60A Power Choke
    - 60A Dr.MOS
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB

  • Intel 802.11ax WiFi
  • ASRock Steel Slot Gen4
  • ASRock Hyper M.2 (PCIe Gen4x4)
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop
• CPU:
  • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
  • Intersil Digital PWM
  • 10 Power Phase design
• Chipset: AMD X570
• Memory:
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
  • Max. capacity of system memory: 64GB**
  • 15μ Gold Contact in DIMM Slots
• BIOS:
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Supports "Plug and Play"
  • ACPI 5.1 compliance wake up events
  • Supports jumperfree
  • SMBIOS 2.3 support
  • CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
• Slots:
  • AMD Ryzen series CPUs (Matisse)
    - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
  • AMD Ryzen series CPUs (Pinnacle Ridge)
    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
  • AMD Ryzen series CPUs (Picasso)
    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Graphics:
  • Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.4 Input with max. resolution up to 4K x 2K (4096x2160) @ 60Hz***
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.0
  • Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.4 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports
  • *Actual support may vary by CPU
    **The Max shared memory 16GB requires 32GB system memory installed.
    ***DisplayPort 1.4 Input is used to connect a Type-C Monitor.
• Storage:
  • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• LAN:
  • Gigabit LAN 10/100/1000 Mb/s
  • GigaLAN Intel I211AT
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE.
• Wireless LAN:
  • Intel 802.11ax WiFi Module
  • Supports IEEE 802.11a/b/g/n/ax
  • Supports Dual-Band (2.4/5 GHz)
  • Supports WiFi6 802.11ax (2.4Gbps)
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.0 + High speed class II
  • Supports MU-MIMO
• Connector:
  • 1 x SPI TPM Header
  • 1 x RGB LED Header*
  • 1 x Addressable LED Header**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

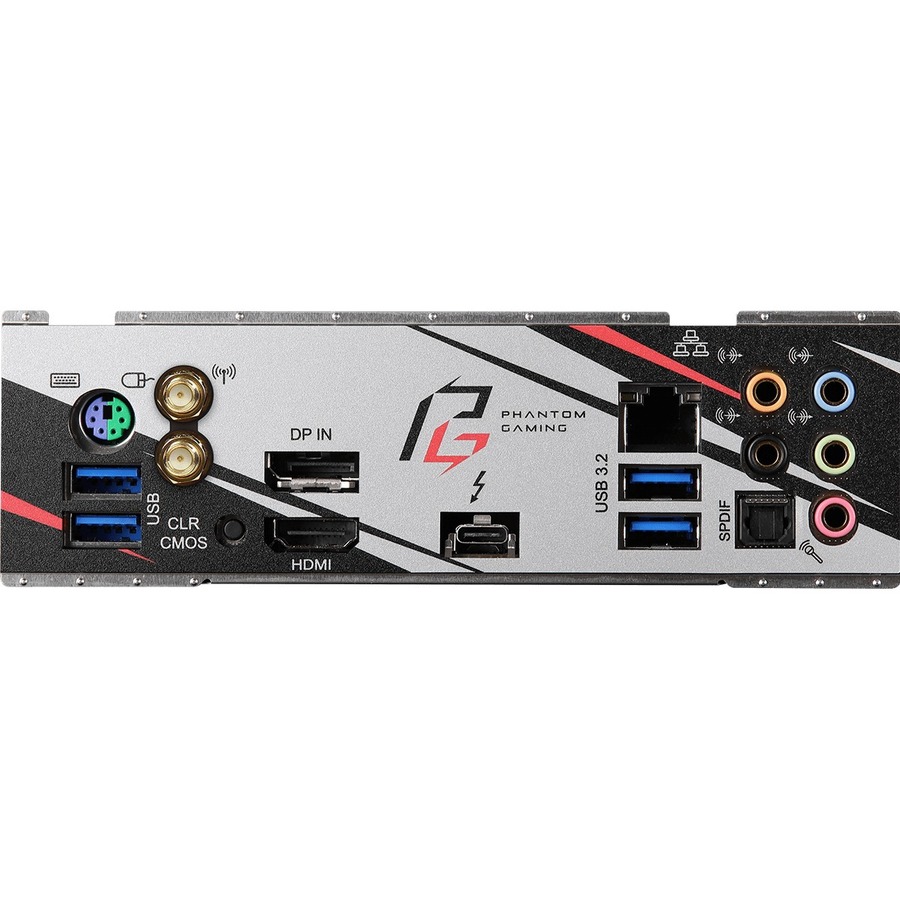

• Rear Panel I/O:
  • 2 x Antenna Ports (on I/O Panel Shield)
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4 Input
  • 1 x Optical SPDIF Out Port
  • 1 x USB 3.2 Gen2 Thunderbolt Type-C Port (40Gb/s for Thunderbolt protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)
  • 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
  • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x Clear CMOS Button
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software:
  • ASRock Phantom Gaming Tuning
  • ASRock Polychrome SYNC
  • ASRock Key Master
  • ASRock XFast LAN
• UEFI:
  • ASRock Full HD UEFI
  • ASRock Instant Flash
  • ASRock Easy RAID Installer
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories:
  • Quick Installation Guide, Support CD
  • 2 x SATA Data Cables
  • 1 x ASRock WiFi 2.4/5 GHz Antenna
  • 1 x Screw for M.2 Socket
• Hardware Monitor:
  • Temperature Sensing: CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Tachometer: CPU/Water Pump, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU/Water Pump, Chassis/Water Pump Fans
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
• Form Factor:
  • Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  • 2oz Copper PCB
• OS: Microsoft Windows 10 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
