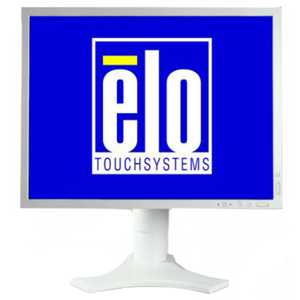

Elo TouchSystems 2020L 20" IntelliTouch Serial LCD Desktop/Wall-Mount Touchmonitor/ Beige
Share this page:
Special Note: Nov 08, 2013
Direct Manufacture warranty. Any problem with the product needs to call Elo at (800) 5571458 X 32. Elo will repair defective unit. No return for replacement through distribution channel.
Elo TouchSystems E757587 MALE_TO_RP_SMA_FEMALE_JACK_ADAPTER
Price: $1,969.50 + Free Shipping
  Quantity:

Availability: Special Order, Ready to Order
ITEM #: 411650
Part #: E757587

Product Condition: Brand new sealed with full manufacturer warranty unless otherwise specified.

Add item to cart to view expected arrival date.

Sales Tax wil be collected for CA,MA customers



  Overview   Accessories
html The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.

Features
  • Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial or USB interface
  • High quality panel with 178° viewing angle
  • Available in black or beige
  • Can be used in portrait mode
  • Adjustable height
  • Carrying handle for easy transport
  • Quick release stand
  • Desktop base can be removed or reversed for wall mounting option
  • VESA mounting option
  • Sealed touchscreen
  • Controls on the front
  • Digital on-screen display (OSD)
Specifications
Model 2020L
Series 5000
Availability Worldwide (In EU/Asia, available on a project basis only)
Case/bezel color Beige or black
Display Size: 20.1" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 4 x 3
Useful screen area Horizontal: 16.14" (409.9 mm)
Vertical: 12.12" (307.8 mm)
Monitor dimensions Width (no base): 17.3" (439.2 mm)
Width (inc. base): 17.3" (439.2 mm)
Height (no base) : 13.4" (340.0 mm)
Height (inc. base)
: 16.4"–22.3" (415.5 mm–565.5 mm)
Depth (no base)
: 3.3" (85.0 mm)
Depth (inc. base)
: 9.7" (247.3 mm)
Optimal (native) resolution 1600 x 1200 at 60 Hz
Other supported resolutions 1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)
Colors 16.7 million
Brightness LCD panel: 280 cd/m2 (typical)
with AccuTouch
: 238 cd/m2 (typical)
with IntelliTouch
: 266 cd/m2 (typical)
Response time 16 msec (typical)
Viewing angle
(typical)
Horizontal: 178° total
Vertical: 178° total
Contrast ratio 700:1 (typical)
Pixel pitch 0.255 mm
Input video signal connector 15pin D-sub, DVI-D, DVI-I and VGA
Sync range Horizontal (analog): 31.5–91.1 kHz
Horizontal (digital): 31.5–99.4 kHz
Vertical: 50.0–85.0 Hz
Power supply Type: Internal
Voltage rating: AC 100–120V; AC 220–240V
Power consumption On: 50W
Power saving mode: < 1W
Temperature Operating: 5°C to 35°C (41°F–95°F)
Storage: -10°C to 60°C (14°F–140°F)
Humidity Operating: 30%-80%
Storage: 10%-85%
Warranty Monitor: 3 years
Backlight lamp life: 40,000 hours until half brightness
MTBF: 40,000–50,000 hours
Agency approvals CE, FCC
On-screen display (OSD) Digital
Mounting options 100 mm VESA mount
Removable and adjustable base
Wall mounting solutions available via third party purchase

Accessories

IntelliTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface wave touch technology. Part number D82064-000, available at additional cost.
